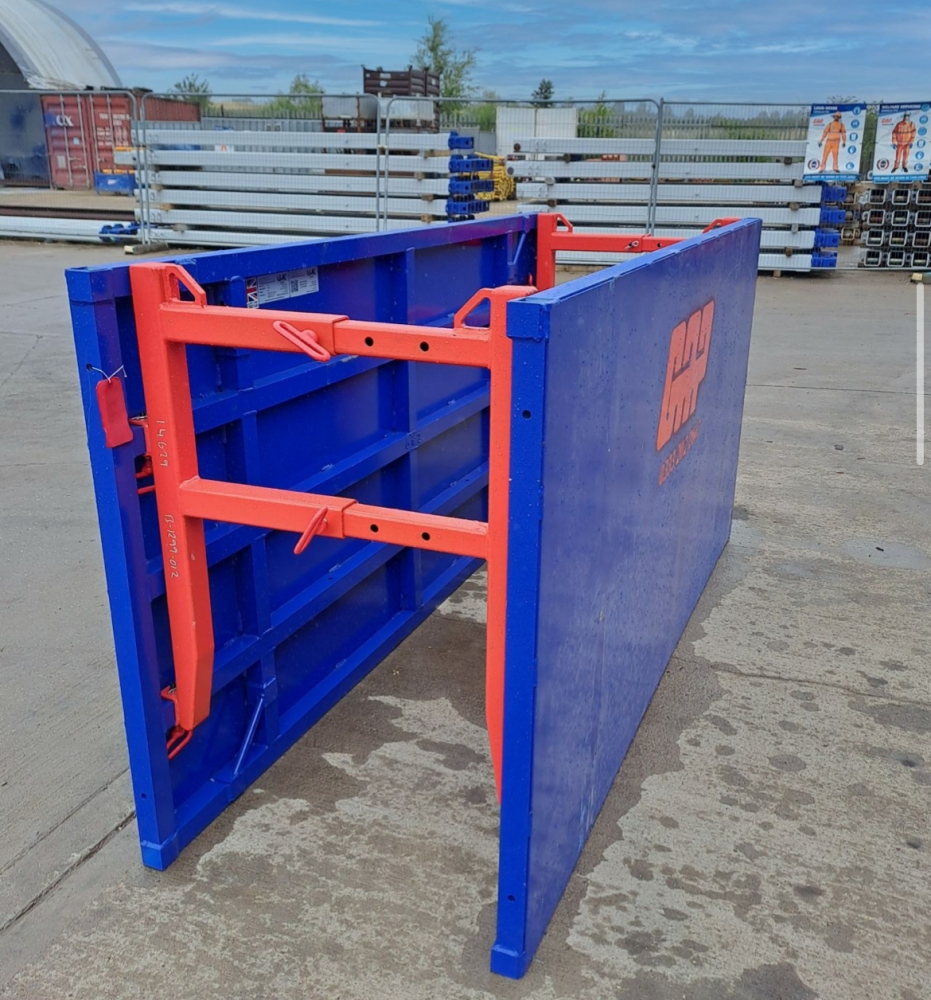

The LITE guard Standard Shields are great for domestic plumbing and maintenance work. They can be dismantled within minutes and carried into backyard or restricted access areas and can be inverted for use in small shafts.
|
Panel Thickness |
Panel Type |
Panel Length |
Panel Height |
Panel Weight |
Internal Clearance Length |
Max Depth |
Working Load Limit |
|
56mm |
Unit |
2400mm |
1200mm |
63 kg |
2150mm |
3600mm |
20 to 50 kPa |
|
56mm |
Unit |
1800mm |
1200mm |
51 kg |
1550mm |
3600mm |
20 to 50 kPa |
|
56mm |
Unit |
1200mm |
1200mm |
39 kg |
950mm |
3600mm |
20 to 50 kPa |
Dimensions are nominal.
Main Features
- Machine size in the 2 tonne to 7 tonne range
- Takes minutes to assemble
- Can be stacked up to 3 high
- Rated at 20 to 50 kN/m²
- Suitable for small excavations
- For use in dig and place
- Easy to transport, flat packed or assembled on a
small truck or work van.
Further information can be found here - https://www.liteguard.co.uk/
Gallery
